Korean J ParasitolKorean J. ParasitolKJPThe Korean Journal of Parasitology0023-40011738-0006The Korean Society for Parasitology and Tropical Medicine23467705358775610.3347/kjp.2013.51.1.93Original ArticleMonoclonal Antibody-Based Dipstick Assay: A Reliable Field Applicable Technique for Diagnosis of Schistosoma mansoni Infection Using Human Serum and Urine SamplesDemerdashZeinab1
MohamedSalwa1
HendawyMohamed2
RabiaIbrahim2
AttiaMohy3
ShakerZeinab1
DiabTarek M2
1
Immunology Department, Theodor Bilharz Research Institute, 12411 Giza, Egypt.
2
Parasitology Department, Theodor Bilharz Research Institute, 12411 Giza, Egypt.
A field applicable diagnostic technique, the dipstick assay, was evaluated for its sensitivity and specificity in diagnosing human Schistosoma mansoni infection. A monoclonal antibody (mAb) against S. mansoni adult worm tegumental antigen (AWTA) was employed in dipstick and sandwich ELISA for detection of circulating schistosome antigen (CSA) in both serum and urine samples. Based on clinical and parasitological examinations, 60 S. mansoni-infected patients, 30 patients infected with parasites other than schistosomiasis, and 30 uninfected healthy individuals were selected. The sensitivity and specificity of dipstick assay in urine samples were 86.7% and 90.0%, respectively, compared to 90.0% sensitivity and 91.7% specificity of sandwich ELISA. In serum samples, the sensitivity and specificity were 88.3% and 91.7% for dipstick assay vs. 91.7% and 95.0% for sandwich ELISA, respectively. The diagnostic efficacy of dipstick assay in urine and serum samples was 88.3% and 90.0%, while it was 90.8% and 93.3% for sandwich ELISA, respectively. The diagnostic indices of dipstick assay and ELISA either in serum or in urine were statistically comparable (P>0.05). In conclusion, the dipstick assay offers an alternative simple, rapid, non-invasive technique in detecting CSA or complement to stool examinations especially in field studies.
Parasitological examination of schistosome eggs in stool or urine is the gold standard in diagnosing the parasitic infection [1-4]. However, it is of limited value because of inadequate sensitivity especially in light infections, <50 eggs/g feces for Schistosoma mansoni and <50 eggs/10 ml urine for Schistosoma haematobium [2,3]. By time, antibody and antigen detection assays have been developed that led to an increase in sensitivity and specificity of these assays, especially the latter [5]. Consequently, many tests have been developed to detect different circulating schistosome antigens (CSA) in urine or serum samples of infected hosts, e.g., sandwich ELISA [6-8], dot-ELISA [9], latex agglutination test [10], and dipstick assay [11-15], using either polyclonal or monoclonal antibodies (mAbs) [16-20].
Interestingly, only the urinary schistosomiasis dipstick has successfully been adopted for field use and was found to be highly sensitive and specific [21], leading many researchers to recommend dipsticks for launching and monitoring mass treatment for S. haematobium [22]. So, this study aimed to develop a mAb-based dipstick test as a simple, rapid, and field applicable screening test for CSA in urine and serum samples of human schistosomiasis mansoni.
MATERIALS AND METHODS
Clinical examination
All patients were subjected to complete history taking and thorough clinical examinations. Recto-sigmoidoscopy with rectal snip was mainly performed for cases who had histories suggestive of schistosomiasis, e.g., bleeding from the rectum with repeatedly negative excreta. It was also performed for most parasitic cases to exclude concomitant schistosomal infection especially for those with history of schistosomiasis or living in an endemic area (farmers). Abdominal ultrasound examination was performed for all cases.
Parasitological examinations
Urine analysis was performed for all study groups using the sedimentation method [23], and patients harboring S. haematobium eggs in their excreta or having mixed parasitic infections were excluded from this study. Stool examination was performed using the merthiolate-iodine-formaldehyde-concentration (MIFC) method for detection of all helminth eggs and protozoal cysts [24]. Subjects were divided into 3 groups, S. mansoni patients (n=60), other parasite infected group (n=30), including Fasciola gigantica (n=10), Ancylostoma (n=10), and Hymenolepis nana (n=10), and parasite-free healthy individuals (n=30). S. mansoni eggs were quantified in stool samples on 3 consecutive days by the modified Kato's thick smear technique [25]. The mean number of eggs was calculated. Blood and urine samples were collected from all cases, and sera were separated. Both sera and urine samples were aliquoted and kept at -70℃ until used.
Preparation of adult worm tegumental antigen (AWTA)
Viable S. mansoni adult worms were purchased from the Schistosome Biological Supply Program at Theodor Bilharz Research Institute, Giza, Egypt. The S. mansoni AWTA (Sm AWTA) was prepared from living worms according to the method of Oaks et al. [26].
Monoclonal antibody (mAb)
The mAb (12D/10F) used in this study was produced by fusion of splenocytes of BALB/c mice immunized with Sm AWTA and BALB/c myeloma cell line (P3x63Ag.8) according to Galfre and Milstein [27]. An IgM MAb (12D/10F) was found to be strongly reactive with S. mansoni AWTA, S. mansoni soluble egg antigen (SEA), and S. haematobium SEA but not reactive with Fasciola hepatica or Echinococcus granulosus antigens as shown by sandwich ELISA. Also, it recognized S. mansoni AWTA antigen with repetitive epitope at 50, 60, and 65 kDa bands as shown by immunoblotting which proved to be proteoglycan in nature [10,28].
Detection of circulating schistosome antigen (CSA) by sandwich ELISA
Being reactive with a repetitive epitope, IgM mAb (12D/10F) was employed as antigen capturing and detecting antibody in sandwich ELISA according to Mohamed et al. [28]. Labeling of IgM MAb with horseradish peroxidase was performed by periodate method according to Nakane and Kawaoi [29]. After several optimization trials, sandwich ELISA was performed as originally described by Engvall and Perlmann [30] and modified by Mohamed et al. [28] and Ibrahim et al. [10].
Detection of CSA by dipstick assay
The mAb-dipstick assay described previously by van Etten et al. [31] was performed as follows: Briefly, nitrocellulose (NC) membrane was coated with purified IgM mAb (200 µl of 1.25 µg/ml of 0.1 M carbonate buffer, pH 9.6) and then incubated overnight into the Bio-Rad-Slot apparatus (Bio-Rad, Hercules, California, USA) at 4℃. The NC membrane was washed with PBS/Tween (PBS/T) 4 times (1 min/wash), then with PBS 2 times (1 min/wash), and blocked with 2.5% fetal calf serum (Sigma, St. Louis, Missouri, USA) diluted in PBS/T, pH 7.4, for 30 min with shaking at room temperature (RT) and washed as previously mentioned. The NC membrane was dried and cut into 2 mm strips and supported into cassettes. The strips were incubated with 500 µl sera (diluted in blocking buffer 1:2) and urine samples (1 ml undiluted) for 30 min at RT with shaking, then washed with PBS/T for 4 times (1 min/wash). The strips were incubated with horseradish mAb peroxidase-conjugated IgM (10 µg/ml of PBS/Tween, 1 ml/strip) with shaking at RT for 30 min, then washed with PBS/T as previously mentioned. The substrate 3,3-diaminobenzidine (Sigma) was added (1 ml/strip) for 2 min at RT with shaking. The enzyme reaction was stopped by washing the strips 3 times with distilled water, then left to dry at RT. The detection of a brown band on the NC membrane meant positive serum or urine samples, while negative samples showed no color.
Statistical analysis
Data were expressed as mean±SD or number (%). Comparison between categorical data was performed using the chi-square test. Standard diagnostic indices, including sensitivity, specificity, and diagnostic efficacy were calculated as described by Galen [32]. P-values less than or equal to 0.05 were considered significant. SPSS computer program (version 13, Windows, Chicago, Illinois, USA) was used for data analysis.
RESULTS
History taking of schistosomal cases showed that out of the 60 S. mansoni-infected patients, 50 (83.3%) had the history of exposure to canal water, 35 (58.3%) had the history of previous diagnosis of schistosomiasis, and 42 (70%) received anti-bilharzial treatment whether they were sure or not of the diagnosis. Clinical examination showed 28 (46.7%) patients with no palpable liver or spleen, 9 (15%) patients had hepatomegaly, 16 (26.7%) had hepatosplenomegaly, and 13 (21.7%) patients had shrunken liver and splenomegaly. The ultrasound findings as regards the liver showed that 37 (61.7%) patients were normal, 13 (21.7%) had periportal fibrosis, and 15 had cirrhotic patterns. Other sonographic findings were 30 (50%) with splenomegaly, 25 (41.7%) with portal vein dilatation, and 6 (10%) having ascites (Table 1).
The dipstick assay was positive in urine samples in 52 out of 60 S. mansoni-infected patients giving 86.7% sensitivity, while in the serum, the dipstick assay was positive in 53 out of 60 Schistosoma-infected patients, and the sensitivity of the assay was 88.3% (Fig. 1). Patients who showed false negative results in urine and serum samples were among the light infection subgroup, and the mean number of eggs in their stool/g was 19.6±6.7 and 23.5±7.2, respectively. The specificity of the assay was determined as the sum of results of the negative control group and other parasite infected group. All the 30 negative controls were dipstick negative in both urine and serum samples while 6 patients out of 30 other parasite infected group showed positive dipstick in urine and 5 patients in serum; they were considered as false positives. The specificity of the assay in urine and serum, therefore, was determined as 90% and 91.7%, respectively. The diagnostic efficacy of the assay was 88.3% and 90.8%, respectively (Table 2).
CSA in urine and serum of different studied groups were also measured by sandwich ELISA. The cut-off value was calculated as the mean optical density (OD) readings (at 492 nm) of negative controls and 2 SD of the mean. The OD readings equal to or less than the cut-off value were considered negative while those readings greater than the cut-off value were considered positive. In urine, the cut-off was 0.323, and ELISA was positive in 54 out of 60 schistosomiasis patients, and the sensitivity of the assay was 90%. In serum, the cut-off was 0.375. and ELISA was positive in 55 out of 60 schistosomiasis patients, and the sensitivity of the assay was 91.7% (Fig. 2). Also, the 6 and 5 patients that showed false negative results in urine and serum were among the light infection subgroup. All the 30 negative controls were ELISA negative while 5 and 3 patients in other parasite infected group showed positive ELISA in urine and sera, respectively, and were considered as false positives. The specificity of the assay was 91.7% and 95%, respectively. The diagnostic efficacy of the assay was 90.8% and 93.3%, respectively (Table 2). There was no statistically significant difference between the diagnostic indices of the dipstick assay and ELISA in serum or urine samples and at the same time between serum and urine within each of the techniques (P>0.05).
DISCUSSION
In Egypt, a national control program against schistosomiasis was started from 1993 to 2006 leading to a gradual decrease in the prevalence of the 2 schistosome species (1.9% for S. mansoni and 1.1% for S. hematobium) [33]. Since then, schistosomiasis is considered as a neglected disease [33]. By time, attention paid to schistosomiasis has been reduced leading to an increase of its prevalence again specially in rural areas reaching to 10% [34,35, personal observations].
Nowadays, the use of ELISA for detection of schistosomal soluble egg antigen is recommended by many authors as a promising complementary field-applicable method for monitoring treatment and infection dynamics in endemic areas [19,36,37]. This is an alternative to traditional parasitological approaches which became more fallible as both the infection prevalence and intensity diminished through control. Though ELISA had high sensitivity and specificity, yet it needs well-trained personnels and equipments and takes time to get results. Consequently, decision makers urged the need for simple, rapid, accurate, field applicable, and non-invasive alternative diagnostic approaches for schistosomiasis which led to the development of a dipstick test especially in highly endemic areas [21].
The present study was carried out to detect CSA in both urine and serum samples of S. mansoni-infected patients as well as patients infected with parasites other than Schistosoma and healthy individual groups using a simple mAb-based dipstick test and comparing its results with mAb-based sandwich ELISA. The sensitivity of the dipstick assay in urine and serum samples was 86.7% and 88.3% compared to 90% and 91.7% by sandwich ELISA, respectively. The specificity of the dipstick assay was 90% and 91.7% for CSA assay in urine and sera, respectively, vs. 9.17% and 95% by sandwich ELISA. It is apparent that the sensitivity, specificity, and diagnostic efficacy of the dipstick assay in urine and serum samples was slightly lower than that detected by sandwich ELISA and at the same time it was slightly lower in urine than that reported in serum samples. Several researchers developed a commercial urine dipstick test for detecting circulating cathodic antigen (CCA) mainly against S. haematobium infection [15;38] and used it in detecting S. mansoni infection. The reported sensitivity of these dipstick assays ranged from 80% to 97.5% against S. mansoni infection, while it gave contradictory results against S. haematobium. For example, Hendawy et al. [14] evaluated the use of mAb-based dipstick as a qualitative assay for rapid diagnosis of S. mansoni. The sensitivity and specificity of the dipstick assay was 97.5% and 96.2%, respectively. Also, Stothard et al. [15] reported 83% sensitivity and 81% specificity of the dipstick for detecting CCA of S. mansoni. Again, Stothard et al. [37] confirmed the same results and reported 95% sensitivity and 80% specificity for S. mansoni and reported unsatisfactory results for S. haematobium, while it was 89% using SEA-ELISA assay. Also, Ashton et al. [39] reported that the sensitivity and specificity of the dipstick was 89.1% and 74.2% for S. mansoni vs. 36.8% and 78.9% for S. haematobium. On the other hand, Bosompem et al. [21] developed a mAb-based dipstick assay against S. haematobium in endemic areas and reported 99.1% sensitivity and 98.3% specificity. Also, in 2004, they reported 98.8% sensitivity and 53.6% specificity [40]. The slight increase in the diagnostic efficacy of the dipstick in our study compared to others could be due to the target antigen used and the nature of antibody directed against different Schistosoma species, raising the necessity to evaluate the efficacy of this technique against S. haematobium.
Detection of CSA in urine instead of serum offers an alternative non-invasive way, especially in large control programs in endemic areas where the process is cumbersome and tedious for schoolchildren who are the main targets for such control.
In conclusion, further studies are recommended to improve the diagnostic efficacy and to decrease the cost of the dipstick, e.g., using a nanoparticle colloidal dye conjugated with the mAb that increases their binding surface area and decreases their hydrophobicity which in turn block the binding sites and consequently decrease the cross-reaction of non-specific antigens.
ACKNOWLEDGMENT
This work was supported by internal project No. 65 D at Theodor Bilharz Research Institute, Giza, Egypt.
1
MontresorACromptonDWGyorkosTWSavioliLHelminth control in school age children: a guide for managers of control programmes2002Geneva, SwitzerlandWorld Health Organization
2
WHOReport of the WHO informal consultation on schistosomiasis in low transmission areas: control strategies and criteria for elimination. WHO/CDS/CPE/SIP/2001.12000London, UKWorld Health Organization
3
WHOPrevention and control of schistosomiasis and soil-transmitted helminthiasis: report of a WHO Expert CommitteeWHO Tech Rep Series2002Vol. 912Geneva, SwitzerlandWorld Health Organization
4
KatzNCoelhoPMZClinical therapy of schistosomiasis mansoni: the Brazilian contributionActa Trop2008108727818617155
5
QianZLDeelderAMSchistosoma japonicum: immunological response to circulating polysaccharide antigens in rabbits with a light infectionExp Parasitol1983553944036852173
6
ShakerZAKaddahMAHanallahSBEl-KhodaryMIProduction of monoclonal antibodies against target schistosomal antigen secreted in the urine of Schistosoma mansoni-infected patientsInt J Parasitol199828189319019925270
7
HanallahSBMohamedSHMaherKMAmerNMSayedHADemerdashZAShakerZAA monoclonal antibody against tegument of adult S. mansoni worms detects active schistosomal infectionKasr El Aini Med J20039209223
8
SalahFEl BassiounyARabieIDemerdashZRoshdyMShakerZHuman schistosomiasis haematobium: effective diagnosis of active infection using a pair of monoclonal antibodies against soluble egg antigenParasitol Res20069952853316633832
9
MahfouzAMRabeeIEl AmirAEvaluation of different immunological techniques for diagnosis of schistosomiasis haematobium in EgyptBiotechnology2012111019
10
IbrahimRBMohamedSHDemerdashZADiabTMMaherKSafwatWShakerZAAnti-S. mansoni mAb-based latex agglutination: a reliable field applicable immunodiagnostic test for screening of active human schistosomiasisJ Am Sci201061927
11
GezaheganTDevelopment of a dipstick method for mosquito blood-meal identification and comparison with ELISA for potential field useMed Sei198942593600
12
StottDIImmunoblotting and dot blottingJ Immunol Methods19891191531872656867
13
Van DamGJWichersJHFerreiraTMGhatiDvan AmerongenADeelderAMDiagnosis of schistosomiasis by reagent strip test for detection of circulating cathodic antigenJ Clin Microbiol2004425458546115583265
14
HendawyMAMohamedSHIbrahimRANitrocellulose cassettes (NCC) as a field applicable technique for rapid and effective diagnosis of schistosomiasis and fascioliasisNew Egypt J Med2006358692
15
StothardJRKabatereineNBTukahebwaEMKazibweFRollinsonDMathiesonWWebsterJPFenwickAUse of circulating cathodic antigen (CCA) dipsticks for detection of intestinal and urinary schistosomiasisActa Trop20069721922816386231
16
DeelderAMDe JongeNBoermanOCFilliéYEHilberathGWRotmansJPGerritseMJSchutDWSensitive determination of circulating anodic antigen in Schistosoma mansoni infected individuals by an enzyme-linked immunosorbent assay using monoclonal antibodiesAm J Trop Med Hyg1989402682722494898
17
Van LieshoutLDe JongeNMansourMMBassilySKrijgerFWDeelderAMCirculating cathodic antigen levels in serum and urine of schistosomiasis patients before and after chemotherapy with praziquantelTrans R Soc Trop Med Hyg1993873113128236404
18
NibbelingHAVan LieshoutLDeelderAMLevels of circulating soluble egg antigen in urine of individuals infected with Schistosoma mansoni before and after treatment with praziquantelTrans R Soc Trop Med Hyg19989267567710326120
19
MahmoudSDemerdashZAMohamedSHBadawyAAMohamedSHShakerZAIbrahimAMStudy of kinetics of circulating schistosome antigens in tissue and sera of infected mice using anti-Schistosoma mansoni soluble egg antigen monoclonal antibodyEgypt J Schistoso Infect Endem Dis200224117
20
CaiYCGuoJChenSHTianLGSteinmannPChenMXLiHAiLChenJXChicken egg yolk antibodies (IgY) for detecting circulating antigens of Schistosoma japonicumParasitol Int20126138539022342296
21
BosompemKMAyiIAnyanWKNkrumahFKKojimaSLimited field evaluation of a rapid monoclonal antibody-based dipstick assay for urinary schistosomiasisHybridoma1996154434478985756
22
EmukahEGutmanJEguagieJMiriESYinkorePOkochaNJibunorVNebeONwoyeAIRichardsFOHeme dipsticks are useful in monitoring the impact of praziquantel treatment on Schistosoma haematobium in sentinel communities of Delta State, NigeriaActa Trop201212212613122245148
23
PetersPAMahmoudAAWarrenKSOumaJHArap SiongokTKField studies of a rapid, accurate means of quantifying Schistosoma haematobium eggs in urine samplesBull WHO1976541591621088097
24
BlaggWMansourNSKhalafGLA new concentration technique for the demonstration of protozoa and helminthic eggs in fecesAm J Trop Med Hyg195542313228845
25
Arap SiongokTKMahmoudAAOumaJHWarrenKSMullerASHandaAKHouserHBMorbidity in schistosomiasis mansoni in relation to intensity of infection: study of a community in Machakos, KenyaAm J Trop Med Hyg1976252732841259088
26
OaksJACainAMowerDARajRKDistribution and removal of the tegument from Schistosoma mansoni with triton X-100J Parasitol1981677617747328449
27
GalfreGMilsteinCProperties of monoclonal antibodies: strategies and proceduresMeth Enzymol19817337300683
28
MohamedSDiabTMSafwatWDemerdashZShakerZAn effective anti-S. mansoni monoclonal antibody for detection of human antigenaemia and antigenureaEgypt J Med Sci2007122533
29
NakanePKKawaoiAPeroxidase-labeled antibody. A new method of conjugationJ Histochem Cytochem197422108410914443551
30
EngvallEPerlmanPEnzyme-linked immunosorbent assay (EL1SA). Quantitative assay of immunuglobulin GJ Immunochem19718871874
31
van EttenLFolmanCCEggelteTAKremsnerPGDeelderAMRapid diagnosis of schistosomiasis by antigen detection in urine with a reagent stripJ Clin Microbiol199432240424067814474
32
GalenRSPredictive values and efficiency of laboratory testingPediatr Clin North Am1980278618697454413
33
WHOGearing up to eliminate schistosomiasis with increased donation of praziquantel from Merck KGaA2012Geneva, SwitzerlandWorld Health Organization
34
UtzingerJRasoGBrookerSDe SavignyDTannerMOrnbjergNSingerBHN'goranEKSchistosomiasis and neglected tropical diseases: towards integrated and sustainable control and a word of cautionParasitology20091361859187419906318
35
AllamAFDiagnosis of schistosomiasis in low endemic areasIn Tech Open Book20121110(www.intechopen.com/download/pdf/pdfs)
36
SalahFDemerdashZShakerZEl BassiounyAEl AttarGIsmailSAbadirNSaad El DinAMansourMA monoclonal antibody against Schistosoma haematobium soluble egg antigen(s): efficacy for diagnosis and monitoring of cure of Schistosoma haematobium infectionParasitol Res200086748010669141
37
StothardJRSousa-FigueiredoJCStandleyCVan DamGJKnoppSUtzingerJAmeriHKhamisANKhamisISDeelderAMMohammedKARollinsonDAn evaluation of urine-CCA strip test and fingerprick blood SEA-ELISA for detection of urinary schistosomiasis in schoolchildren in ZanzibarActa Trop2009111647019426665
38
BosompemKMAyiIAnyanWKArishimaTNkrumahFKKojimaSA monoclonal antibody-based dipstick assay for diagnosis of urinary schistosomiasisTrans R Soc Trop Med Hyg1997915545569463666
39
AshtonRAStewartBTPettyNLadoMFinnTBrookerSKolaczinskiJHAccuracy of circulating cathodic antigen tests for rapid mapping of Schistosoma mansoni and S. haematobium infections in Southern SudanTrop Med Int Health2011161099110321692957
40
BosompemKMOwusuOOkanlaEOKojimaSApplicability of a monoclonal antibody-based dipstick in diagnosis of urinary schistosomiasis in the Central Region of GhanaTrop Med Int Health2004999199615361112

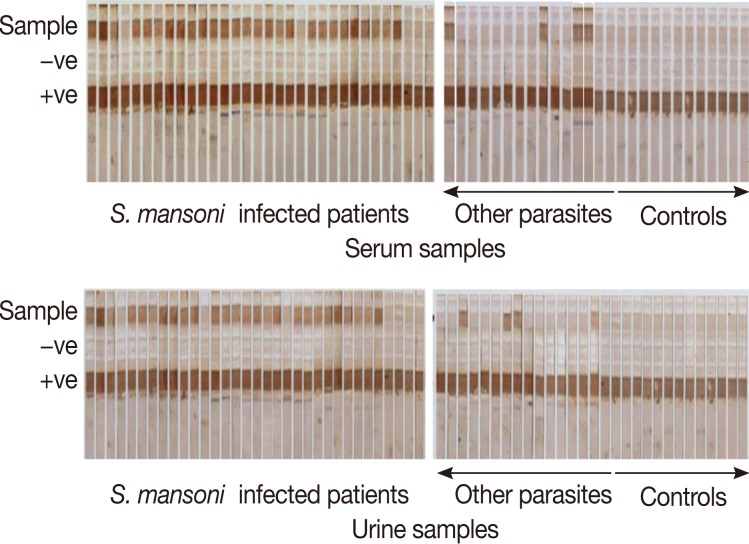

Fig. 1
Detection of CSA in serum and urine samples of different study groups by the dipstick assay. Dipsticks were dotted with the adult worm tegumental antigen (AWTA) as the positive control and PBS as the negative control.
Fig. 2
Mean level of CSA (±SD) in sera and urine samples of different study groups measured by sandwich ELISA (OD reading at 492 nm).
Table 1.
Clinical and sonographic findings of S. mansoni and other parasite-infected groups
No. of cases (%)
S. mansoni (n = 60)
Other parasites (n = 30)
History of exposure to canal water
50 (83.3)
10 (33.3)
Previous history of schistosome infection
35 (58.3)
1 (3.3)
Previous schistosome treatment
42 (70.0)
1 (3.3)
Bleeding/rectum, tenesmus
5 (8.3)
2 (6.7)
Clinical findings
Normal
28 (46.7)
20 (66.7)
Hepatomegaly
9 (15.0)
5 (16.7)
Hepatospelnomegaly
16 (26.7)
4 (13.3)
Shrunken liver & splenomegaly
13 (21.7)
1 (3.3)
Sonographic findings (liver)
Normal/periportal thickening/cirrhosis
37/13/15 (61.7/21.7/50.0)
20/7/3 (66.7/23.3/10.0)
Portal vein dilatation
25 (41.7)
1 (3.3)
Splenomegaly
30 (50.0)
2 (6.6)
Ascites
6 (10.0)
0 (0.0)
Kidney disease
0 (0.0)
0 (0.0)
Data are expressed as the number and percentage.
Table 2.
Diagnostic indices (sensitivity, specificity, and diagnostic efficacy) of dipstick and ELISA in studied groups
