Oh, Seo, Hong, Chai, Oh, Park, and Shin: Ancient Mitochondrial DNA Analyses of Ascaris Eggs Discovered in Coprolites from Joseon Tomb


Analysis of ancient DNA (aDNA) extracted from Ascaris is very important for understanding the phylogenetic lineage of the parasite species. When aDNAs obtained from a Joseon tomb (SN2-19-1) coprolite in which Ascaris eggs were identified were amplified with primers for cytochrome b (cyt b) and 18S small subunit ribosomal RNA (18S rRNA) gene, the outcome exhibited Ascaris specific amplicon bands. By cloning, sequencing, and analysis of the amplified DNA, we obtained information valuable for comprehending genetic lineage of Ascaris prevalent among pre-modern Joseon peoples.

Ancient DNA (aDNA) analysis on archaeological samples is very important to know the change in genetic traits of parasite species through history. The earliest aDNA studies on Ascaris spp. were those of Loreille et al. [1] and Leles et al. [2]. In the reports, Ascaris aDNA could be successfully obtained by amplification with the archaeological samples, which later became the fundamental technique for phylogenetic analysis of the species. However, though the reports were a valuable enough for concerned researches on Ascaris lineage, we also admit that similar studies should be done more on the other archaeological samples because the quantity of Ascaris aDNA data is still insufficient for understanding its complete evolutionary history. In this regard, the paleoparasitological studies on archaeological samples from Joseon tombs in Korea are very important, by which the existing pool of Ascaris aDNA in East Asia could be expanded.
Actually, we previously reported a number of paleoparasitological studies with the samples from archaeological sites in South Korea [3-11]. Of them, the amplification of Ascaris aDNA could be available from a Joseon mummy case [12]. As its preservation status was quite good even after several hundred years of burial, aDNA could be extracted from ancient coprolites successfully, and then be amplified by PCR. Fortunately enough, recently, from another Joseon tomb found in Seoul City, once again we discovered the coprolite in which many ancient Ascaris eggs were still remained. The molecular analysis on the Ascaris aDNA in the sample, if it will be done successfully, can be a valuable addition to the existing genetic pool of the ancient Ascaris. We therefore tried to extract, amplify, and analyze Ascaris aDNA from newly collected ancient sample. It should be very suggestive to a clearer understanding of the Ascaris infection prevalent among pre-modern East Asian people.
In 2007, archaeologists in Hangang Institute of Cultural Heritage (Seoul, South Korea) found the Joseon tombs in Sinnae-Dong of Seoul Metropolitan City [5]. They discovered 2 coffins in the same burial pit, which should be those for a wife and a husband. Of them, the husband's coffin (SN2-19-1) was examined by us. Most of dead person's soft tissues were already mummified when we opened the coffin. We collected soil sediments from 8 different areas (Samples A to H) on the basal plate of coffin. From the surface of the sacrum, we also collected precipitates upon it (Sample sacrum). The outcome of microscopic examination on this case was already reported by us [5]. Briefly, A. lumbricoides eggs (64.0±2.3 μm ×52.5±1.7 μm) were discovered in the samples of E, F, H, and sacrum. The estimated average number of Ascaris eggs was 6,408.3 per gram.
Using the Ascaris egg positive samples, our aDNA analysis was performed. Above all, to make our aDNA work much authentic, we followed the criteria of authentication [13,14]. During all the lab procedures, we wore protection gloves, masks, gowns, and head caps. We did all experiments in our aDNA lab facility that is set up in accordance with the suggestions of Hofreiter et al. [13] or Willerslev and Cooper [14]. We could have ruled out the possibility of contamination by animal (e.g., pigs) or human feces from the current case, confirming the authenticity of origin of parasite eggs we identified in the samples.
Sediment samples including parasite eggs were treated with 1 ml lysis buffer (EDTA 50 mM, pH 8.0; 1 mg/ml of proteinase K; SDS 1%; 0.1 M DTT) at 56˚C for 24 hr. DNA extraction was performed by phenol/chloroform/isoamyl alcohol (25:24:1) method. Primers for Ascaris cytochrome b (cyt b) or Ascaris 18S ribosomal RNA (rRNA) gene were prepared, following the methods of Loreille et al. [1] and Oh et al. [12]. The primers used for amplification of mitochondrial cyt b fragment were Asc1 (5ʹ-GTT AGG TTA CCG TCT AGT AAG G-3ʹ) and Asc2 (5ʹ-CAC TCA AAA AGG CCA AAG CAC C-3ʹ). 18S rRNA region was amplified by Asc 6 (5ʹ-CGA ACG GCT CAT TAC AAC AG-3ʹ) and Asc 7 (5ʹ-TCT AAT AGA TGC GCT CGT C-3ʹ); Asc 8 (5ʹ-ATA CAT GCA CCA AAG CTC CG-3ʹ) and Asc 9 (5ʹ-GCT ATA GTT ATT CAG AGT CAC C-3'); Asc 10 (5ʹ-CCA TGC ATG TCT AAG TTC AA-3ʹ) and Asc 11 (5ʹ-CAR AAA WTC GGA GCT TTG GT-3ʹ). The amplicon sizes were 142 (Asc1/ Asc2), 123 (Asc6/Asc7), 99 (Asc8/Asc9), and 147 (Asc10/Asc11) base pairs (bps), respectively.
DNA amplification was done with 20 μl reaction mixture containing 1× High Fidelity PCR buffer, 2 mM MgSO4, 200 μM dNTP mixture, 2 unit of Platinum® Taq DNA Polymerase High Fidelity (Invitrogen, Hercules, California, USA), 10 pmol of each primer, and 1 mg/ml of BSA (New England Biolabs, Beverly, Massachusetts, USA). PCR conditions were as follows: pre-denaturation at 94˚C for 10 min; 50 cycles of denaturation at 94˚C for 45 sec, annealing at 50˚C for 45 sec, extension at 72˚C for 45 sec, and final extension at 72˚C for 10 min. In our agarose gel electrophoresis, the amplified products showed specific bands for Ascaris 18S rRNA or cyt b mitochondrial genes whereas negative controls (extraction controls) did not exhibit any amplified bands (Fig. 1).
Cloning and sequencing was also done for the amplified PCR products. Briefly, after aDNA in amplified bands was extracted by QIAquick Gel Extraction Kit (Qiagen, Hilden, Germany), bacterial transformation with amplified DNA product was done using pGEM-T Easy Vector system (Promega, Madison, Illinois, USA). Transformed bacteria were grown in agar plate containing ampicillin (50 μg/ml), 0.5 mM IPTG, and XGAL (40 μg/μl) for the next 14 hr. After selected colonies were grown once again in LB media for 12 hr, plasmid was harvested using QIAprep spin miniprep kit (Qiagen). Sequencing for each clone was done by ABI Prism 3100 automatic sequencer (Applied Biosystems, Foster City, California, USA) with ABI Prism BigDye Terminator Cycle Sequencing Ready Reaction Kit (Applied Biosystems).
We repeated cloning and sequencing several times for each amplified product, to get the consensus sequences. By these trials, 30 clone sequences were successfully obtained from 18S rRNA gene while 12 clones were from mitochondrial cyt b gene. The pairwise and multiple sequence alignments were done by Clustal W implemented in MEGA6 [15,16]. Using the aligned clone sequences, we obtained consensus sequences for each gene (data not shown).
Next, the consensus sequences were compared to those available in GenBank by NCBI/BLAST tools [17]. Web browser module and Alignment Explorer in MEGA6 were used for retrieving sequences homologous to those of interest from National Center for Biotechnology Information (NCBI) GenBank database. Ascaris mitochondrial cyt b gene sequence obtained from SN2-19-1 were 99% identical to the ancient Ascaris sequences reported in the study of Oh et al. [12] (GU339224.1). It also showed similarities to cyt b genes of A. lumbricoides (99%, KF798183.1) and A. suum (97%, HQ704901.1). However, Baylisascaris (KC797002.1) exhibited only 94% similarity to ours (Fig. 2).
To estimate the evolutionary divergence between cyt b gene sequences, the numbers of base substitutions per site from between sequences were counted for 12 nucleotide sequences. Analyses were conducted using the maximum composite likelihood model [18]. Pairwise distances between sequences obtained by MEGA6 [16] are available in Table 1. The pattern of distances between each taxon is similar to that of sequence similarities seen in Fig. 2.
The evolutionary relationship of cyt b gene among taxa was inferred by the Neighbor-joining (NJ) method [19] in MEGA6 [16]. Selected parameters were ‘gamma distributed with invariant sites (G+I)’ for rates among sites, and partial deletion for gaps/missing data treatment. All positions with less than 95% site coverage were eliminated. Fewer than 5% alignment gaps, missing data, and ambiguous bases were therefore allowed at any position. To estimate the reliability of the tree, we tested bootstrap with MEGA6 [16]. The number of bootstrap replicates was 1,000 [20]. NJ tree for cyt b gene sequences with bootstrap values is seen in Fig. 3.
In the NJ tree, we could find 2 different clusters showing relatively higher in bootstrap values (65% for both) (Fig. 3). Cyt b sequence of the current Joseon SN2-19-1 belonged to the cluster in which A. lumbricoides sequences were mainly found. In another cluster, however, we found both A. lumbricoides and A. suum sequences. Considering that bootstrap values are not so high (below 70%) for each node of branches (Fig. 3), we need more studies on ancient and contemporary Ascaris to accept the pattern of current dendrogram seriously.
Meanwhile, 18S rRNA gene sequence obtained in this study was not only specific for Ascaris. It was 100% identical to ancient Ascaris DNA of Oh et al. [12] (GU339223.1), and to the other A. suum and A. lumbricoides sequences available in GenBank. We also noted that the 18S rRNA sequence of genus Baylisascaris exhibited 100% match with that of Ascaris (Fig. 4). In general, 18S rRNA genes have been used for the species identification, especially for studying evolutionary relationship between different species [1,12,21]. As far as Ascaris is concerned, however, we agree with Søe et al. [22]'s opinion that 18S rRNA gene is not good for molecular differentiation of Ascaris from other nematodes. Considering that mitochondrial cyt b in this study showed much significant information on molecular differentiation of each nematode species than 18S rRNA gene did, our future studies should concentrate more upon the Ascaris mitogenome, especially on its hypervariable regions.
Most Ascaris sequences in GenBank currently are uploaded as separate species such as A. lumbricoides and A. suum. Besides low divergence in morphology [23-26], A. lumbricoides and A. suum could not be differentiated easily by any of molecular markers either [21]. Researchers therefore claimed nowadays that both are not different species at all, but are a single species only infecting the different hosts by chance: humans and pigs [27-29]. Actually, considering that Ascaris isolated from chimpanzee (KC839986.1) and gibbon (KC839987.1) did show very similar cyt b sequence to those of A. lumbricoides (Fig. 2), Ascaris as a single parasite species might infect much broader range of host animal species than expected.
Taken together, the parasite Ascaris spp. are of great public health concern because it still infects 1.2 billion people worldwide [30]. To obtain the solid evidence for hypothesis about Ascaris evolution, however, much more data should be added to the extant genetic pool of Ascaris [27]. This is also true for Ascaris aDNA because the sequences from several-hundred to -thousand year old samples can provide valuable information on molecular evolution that could not be easily obtained from the contemporary Ascaris samples. More studies on Ascaris aDNA can enrich our knowledge on genetic history of the Ascaris that were prevalent among pre-modern Korean and East Asian peoples.


This study was supported by the National Research Institute of Cultural Heritage, Korea (08D011Y-00110-2008), and Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education, Korea (2013R1A1A2009688).

Conflict of interest

We have no conflict of interest related to this work.


1. Loreille O, Roumat E, Verneau O, Bouchet F, Hänni C. Ancient DNA from Ascaris: extraction amplification and sequences from eggs collected in coprolites. Int J Parasitol 2001;31:1101-1106.
crossref pmid
2. Leles D, Araújo A, Ferreira LF, Vicente ACP, Iñiguez AM. Molecular paleoparasitological diagnosis of Ascaris sp. from coprolites: new scenery of ascariasis in pre-Columbian South America times. Mem Inst Oswaldo Cruz 2008;103:106-108.
crossref pmid
3. Seo M, Guk SM, Kim J, Chai JY, Bok GD, Park SS, Oh CS, Kim MJ, Yil YS, Shin MH, Kang IU, Shin DH. Paleoparasitological report on the stool from a Medieval child mummy in Yangju, Korea. J Parasitol 2007;93:589-592.
crossref pmid
4. Seo M, Shin DH, Guk SM, Oh CS, Lee EJ, Shin MH, Kim MJ, Lee SD, Kim YS, Yi YS, Spigelman M, Chai JY. Gymnophalloides seoi eggs from the stool of a 17th century female mummy found in Hadong, Republic of Korea. J Parasitol 2008;94:467-472.
crossref pmid
5. Seo M, Oh CS, Chai JY, Lee SJ, Park JB, Lee BH, Park JH, Cho GH, Hong DW, Park HU, Shin DH. The influence of differential burial preservation on the recovery of parasite eggs in soil samples from Korean medieval tombs. J Parasitol 2010;96:366-370.
crossref pmid
6. Seo M, Oh CS, Chai JY, Jeong MS, Hong SW, Seo YM, Shin DH. The changing pattern of parasitic infection among Korean populations by paleoparasitological study of Joseon Dynasty mummies. J Parasitol 2014;100:147-150.
crossref pmid
7. Seo M, Araujo A, Reinhard K, Chai JY, Shin DH. Paleoparasitological studies on mummies of the Joseon Dynasty, Korea. Korean J Parasitol 2014;52:235-242.
crossref pmid pmc
8. Shin DH, Chai JY, Park EA, Lee W, Lee H, Lee JS, Choi YM, Koh BJ, Park JB, Oh CS, Bok GD, Kim WL, Lee E, Lee EJ, Seo M. Finding ancient parasite larvae in a sample from a male living in late 17th century Korea. J Parasitol 2009;95:768-771.
crossref pmid
9. Shin DH, Oh CS, Chai JY, Lee HJ, Seo M. Enterobius vermicularis eggs discovered in coprolites from a medieval Korean mummy. Korean J Parasitol 2011;49:323-326.
crossref pmid pmc
10. Shin DH, Oh CS, Chai JY, Ji MJ, Lee HJ, Seo M. Sixteenth century Gymnophalloides seoi infection on the coast of the Korean Peninsula. J Parasitol 2012;98(6):1283-1286.
crossref pmid
11. Shin DH, Shim SY, Kim MJ, Oh CS, Lee MH, Jung SB, Lee GI, Chai JY, Seo M. V-shaped Pits in Regions of Ancient Baekje Kingdom Paleoparasitologically Confirmed as Likely Human-Waste Reservoirs. Korean J Parasitol 2014;52:569-573.
crossref pmid pmc
12. Oh CS, Seo M, Lim NJ, Lee SJ, Lee EJ, Lee SD, Shin DH. Paleoparasitological report on Ascaris aDNA from an ancient East Asian sample. Mem Inst Oswaldo Cruz 2010;105:225-228.
crossref pmid
13. Hofreiter M, Serre D, Poinar HN, Kuch M, Pääbo S. Ancient DNA. Nat Rev Genet 2001;2:353-359.
crossref pmid
14. Willerslev E, Cooper A. Ancient DNA. Proc Biol Sci 2005;272:3-16.
15. Thompson JD, Gibson TJ, Plewniak F, Jeanmougin F, Higgins DG. The CLUSTAL_X windows interface: flexible strategies for multiple sequence alignment aided by quality analysis tools. Nucleic Acids Res 1997;25:4876-4882.
16. Tamura K, Stecher G, Peterson D, Filipski A, Kumar S. MEGA6: Molecular Evolutionary Genetics Analysis version 6.0. Mol Biol Evol 2013;30:2725-2729.
crossref pmid pmc
17. Altschul SF, Madden TL, Schäffer AA, Zhang J, Zhang Z, Miller W, Lipman DJ. Gapped BLAST and PSI-BLAST: a new generation of protein database search programs. Nucleic Acids Res 1997;25:3389-3402.
crossref pmid pmc
18. Tamura K, Nei M, Kumar S. Prospects for inferring very large phylogenies by using the neighbor-joining method. Proc Natl Acad Sci USA 2004;101:11030-11035.
crossref pmid pmc
19. Saitou N, Nei M. The neighbor-joining method: A new method for reconstructing phylogenetic trees. Mol Biol Evol 1987;4:406-425.
20. Felsenstein J. Confidence limits on phylogenies: An approach using the bootstrap. Evolution 1985;39:783-791.
21. Anderson TJC. The dangers of using single locus markers in parasite epidemiology: Ascaris as a case study. Trends Parasitol 2001;17:183-188.
crossref pmid
22. Søe MJ, Nejsum P, Fredensborg BL, Kapel CM. DNA typing of ancient parasite eggs from environmental samples identifies human and animal worm infections in Viking-age settlement. J Parasitol 2015;101:57-63.
crossref pmid
23. Sprent JFA. Anatomical distinction between human and pig strains of Ascaris. Nature 1952;170:627-628.
crossref pmid
24. Ansel M, Thibaut M. Value of the specific distinction between Ascaris lumbricoides Linne 1758 and Ascaris suum Goeze 1782. Int J Parasitol 1973;3:317-319.
crossref pmid
25. Maung M. Ascaris lumbricoides Linne, 1758 and Ascaris suum Goeze, 1782: morphological differences between specimens obtained from man and pig. Southeast Asian J Trop Med Public Health 1973;4:41-45.
26. Kurimoto H. Morphological, biochemical and immunological studies on Ascaris lumbricoides Linnaeus, 1758 and Ascaris suum Goeze, 1782. Jpn J Parasitol 1974;23:251-267.

27. Leles D, Gardner SL, Reinhard K, Iñiguez A, Araujo A. Are Ascaris lumbricoides and Ascaris suum a single species? Parasit Vectors 2012;5:42.
28. Liu GH, Wu CY, Song HQ, Wei SJ, Xu MJ, Lin RQ, Zhao GH, Huang SY, Zhu XQ. Comparative analyses of the complete mitochondrial genomes of Ascaris lumbricoides and Ascaris suum from humans and pigs. Gene 2012;492:110-116.
29. Shao CC, Xu MJ1, Alasaad S, Song HQ, Peng L, Tao JP, Zhu XQ. Comparative analysis of microRNA profiles between adult Ascaris lumbricoides and Ascaris suum. BMC Vet Res 2014;10:99.
crossref pmid pmc
30. Hagel I, Giusti T. Ascaris lumbricoides: an overview of therapeutic targets. Infect Disord Drug Targets 2010;10:349-367.
crossref pmid

Fig. 1.
Agarose gel electrophoresis for Ascaris 18S rRNA (by primers Asc 1 and 2) or cyt b mitochondrial gene fragments (by primers Asc 6 and 7; Asc 8 and 9; and Asc 10 and 11). Specific bands of amplicons could be seen at 142 bp (Asc1 and 2), 123 bp (Asc 6 and 7), 99 bp (Asc 8 and 9), and 147 bp (Asc 10 and 11), respectively. Asterisks indicate negative controls (extraction controls).

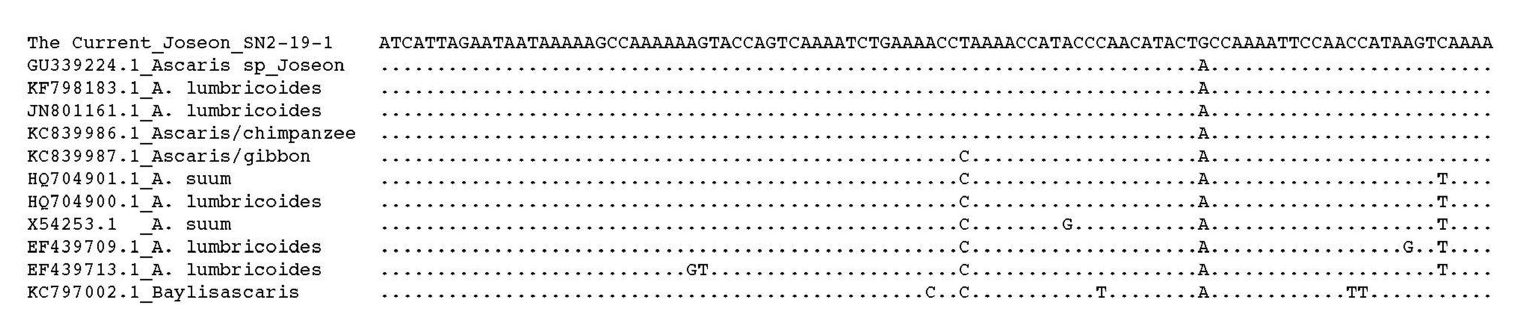

Fig. 2.
Comparison of consensus sequence of Ascaris mitochondrial cyt b gene sequence from SN2-19-1 case to those available in GenBank.

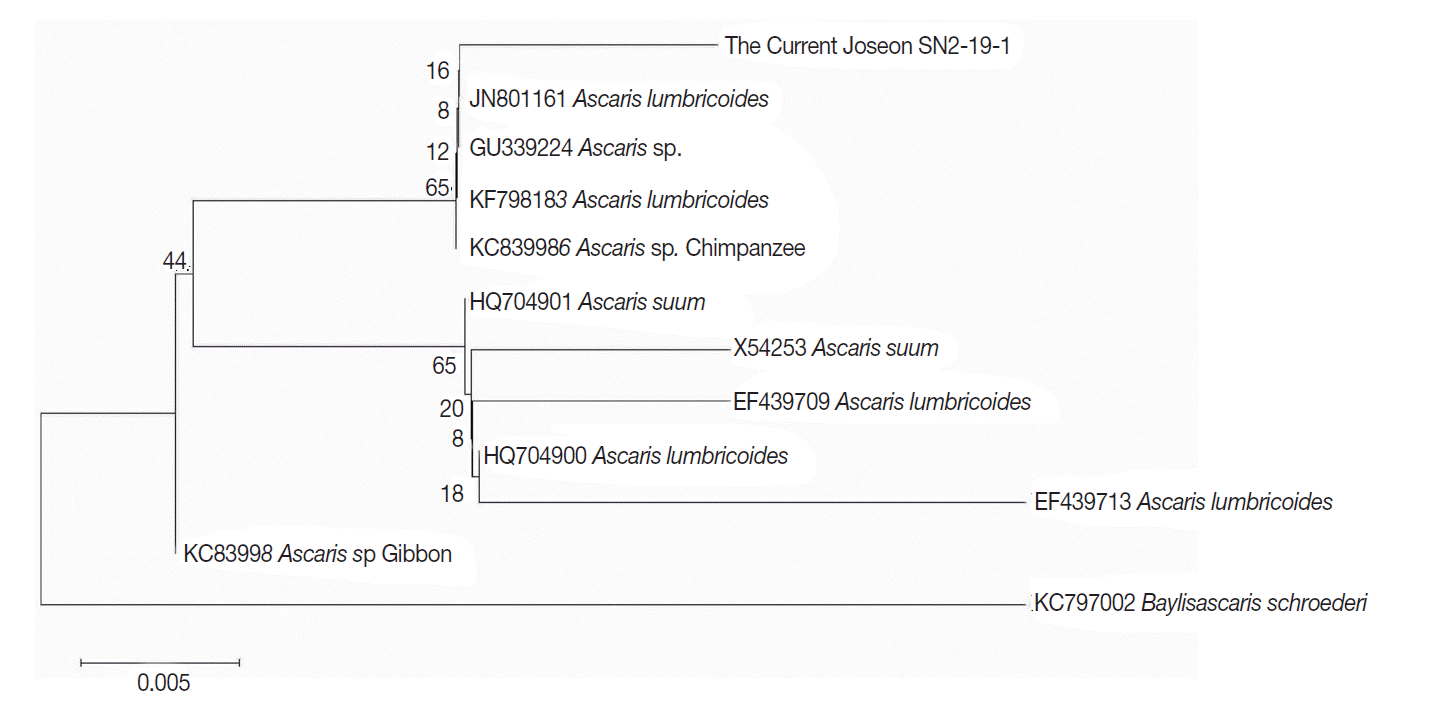

Fig. 3.
Neighbor-joining tree of Ascaris cyt b sequences. The optimal tree with the sum of branch length = 0.09291711. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test are marked next to the branches.

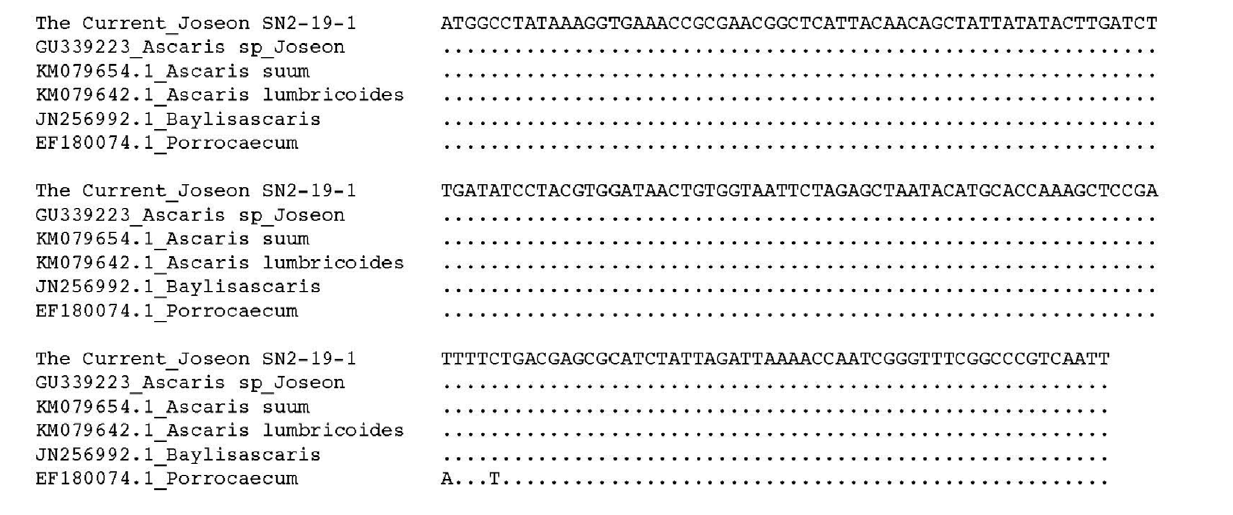

Fig. 4.
Comparison of consensus sequence of Ascaris 18S rRNA gene sequence from SN2-19-1 case to those available in GenBank.
Table 1.
Pairwise distances between cytochrome b sequences
1 2 3 4 5 6 7 8 9 10 11 12
[2] 0.008
[3] 0.008 0.000
[4] 0.008 0.000 0.000
[5] 0.008 0.000 0.000 0.000
[6] 0.016 0.008 0.008 0.008 0.008
[7] 0.025 0.016 0.016 0.016 0.016 0.008
[8] 0.025 0.016 0.016 0.016 0.016 0.008 0.000
[9] 0.034 0.025 0.025 0.025 0.025 0.016 0.008 0.008
[10] 0.034 0.025 0.025 0.025 0.025 0.016 0.008 0.008 0.016
[11] 0.043 0.034 0.034 0.034 0.034 0.025 0.017 0.017 0.025 0.025
[12] 0.053 0.044 0.044 0.044 0.044 0.035 0.044 0.044 0.053 0.053 0.064

1, The Current Joseon case (SN2-19-1); 2, Ascaris sp. (GU339224); 3, A. lumbricoides (KF798183); 4, A. lumbricoides (JN801161); 5, Ascaris sp. from chimpanzee (KC839986); 6, Ascaris sp. from gibbon (KC839987); 7, A. suum (HQ704901); 8, A. lumbricoides (HQ704900); 9, A. suum (X54253); 10, A. lumbricoides (EF439709); 11, A. lumbricoides (EF439713); 12, Baylisascaris schroederi (KC797002).
